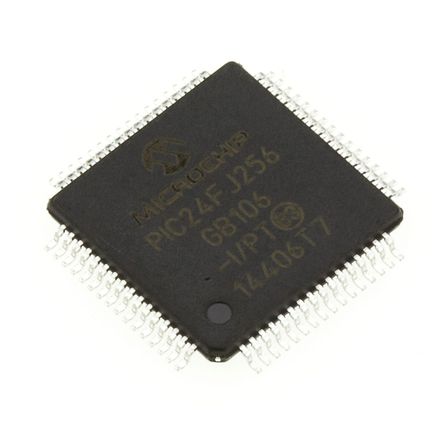

The PIC24FJ256GB106-I/PT is a 16bit, general purpose flash microcontroller in 64 pin TQFP package. The device has five 16bit timers, 16 channel 10bit A/D converter, three analogue comparators with programmable input/output configuration, hardware real time clock/calendar (RTCC) and charge time measurement unit (CTMU).
USB v2.0 on-the-go (OTG) compliant
Modified harvard architecture without DSP
256KB of program memory
16KB of SRAM
Four UART with IrDA, three SPI, JTAG and three I2C interfaces
Up to 16MIPS operation at 32MHz
Operating voltage range from 2V to 3.6V
51 I/O pins
Nine 16bit capture inputs with dedicated time base
