PIC32MZ2048ECM144-I/PH -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PIC32MZ2048ECM144-I/PH

仓库库存编号：

2449076

技术数据表：

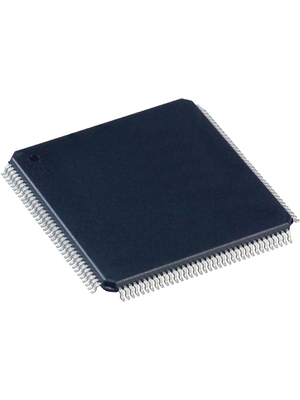

The PIC32MZ2048ECM144-I/PH is a 32-bit 144-pin 2048kB Embedded Connectivity Microcontroller features audio and graphics interfaces, HS USB, Ethernet and advanced analogue. The MIPS32? microAptiv? microprocessor core is the heart of the PIC32MZ EC family device processor. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the proper destinations. The MIPS32? microAptiv? microprocessor core in PIC32MZ EC family devices contains several logic blocks working together in parallel, providing an efficient high-performance computing engine. The processor core execution unit implements a load/store architecture with single-cycle ALU operations (logical, shift, add, subtract) and an autonomous multiply/divide unit.

• Dual panel flash for live update support
• 10-bit, 500kSPS and 48-channel ADC module
• Memory management unit for optimum embedded OS execution
• SPI/I2S interfaces for audio processing and playback
• High-speed USB device/host/OTG
• 10/100Mbps Ethernet MAC with MII and RMII interface
• Code-efficient (C and assembly) architecture
• Low-power management modes (idle and sleep)
• Peripheral - Peripheral pin select (PPS) functionality to enable function remap
• Audio/graphics/touch HMI - SPI and I2C? audio data control interface

• Advanced analogue - Flexible and independent ADC trigger sources
• Debugger development support - In-circuit and in-application programming
