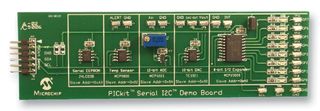

The PKSERIAL-I2C1是一个PICkit serial I2C demo电路板 demonstrates I2C serial 通讯和operation of the following设备2Kbit Serial EEPROM(24LC02B), high-accuracy 温度传感器(MCP9801), 低功率12位 A/D Converter, 10bit 数字to 模拟converter和8位 I/O expander. The PICkit serial analyser提供the I2C master mode serial 通讯和power. The PICkit Serial I2C demo电路板设备all operate in the I2C slave mode. The PICkit Serial I2C Demo电路板 can easily be connected to virtually any demo or 开发电路板 by connecting the 通讯 lines to 连接器 P1. Pull up电阻R2和R3 are not populated. The PICkit serial analyser can be configured to enable 内部pull up电阻. When using the PICkit serial analyser, enable 内部pull up电阻. Or电阻R2和R3 can be populated by the user 用于use with other 开发电路板s or the PICkit Serial analyser 内部pull up电阻disabled.
- 五个独特设备 带I2C接口
- I2C总线和大多数设备上的测试点
- 可直接连接至I2C总线或PICkit串行分析仪
