RN171XVW-I/RM -

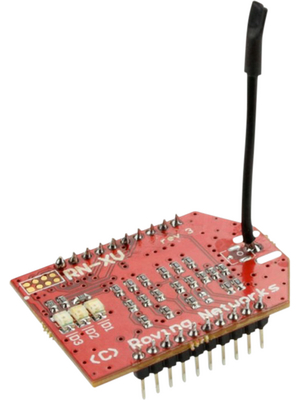

Standard Configuration Wi-Fi Module with Wire Antenna

MICROCHIP RN171XVW-I/RM
声明：图片仅供参考，请以实物为准！
制造商产品编号：
RN171XVW-I/RM
仓库库存编号：
2144011
技术数据表：
(EN)
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

RN171XVW-I/RM产品概述

RN171XVW-I/RM module is a certified WiFi solution especially designed for designers who want to migrate their existing 802.15.4 architecture to a more standard TCP/IP based platform without redesigning their existing hardware. The RN-171-XV module is based on Roving Networks' robust RN-171 WiFi module and incorporates an 802.11 b/g radio, a 32bit SPARC processor, a TCP/IP stack, a real time clock, a crypto accelerator, power management unit, and an analog sensor interface. The module offers additional functionality through its onboard programmable GPIO pins (10) and ADCs (8). The ADCs provide 14bit resolution while the GPIOs can be configured to provide standard functionality or status signalling to a host microcontroller, reducing the need for serial polling between the WiFi module and host microcontroller. The module is pre-loaded with firmware to simplify integration and minimize applications development time.
  • Standard configuration industrial temp, WiFi 802.15.4 replacement solution with 1/4inch wire antenna
  • On board TCP/IP stack provides internet access to every node
  • Ultra low power
  • Configurable transmit power 0dBm to +12dBm
  • TTL UART hardware interface
  • Data rate of 464Kbps using hardware flow control
  • Through hole board simplifies system integration
  • Complete TCP/IP networking stack
  • WiFi Alliance certified for WEP, WPA, and WPA2-PSK
  • WPS mode for easy configuration

无线, 计量, 工业, 传感与仪器, 机器人, 通信与网络

RN171XVW-I/RM产品信息

  射频频率  2.48MHz
  模块接口  UART
  模块应用  无线连接
  产品范围  -
关键词
电话:400-900-3095
QQ:800152669

RN171XVW-I/RM产地与重量

原产地：
United States

进行最后一道重要生产流程所在的国家

RoHS 合规：
是
税则号：
85369010
重量（千克）：
.00635
