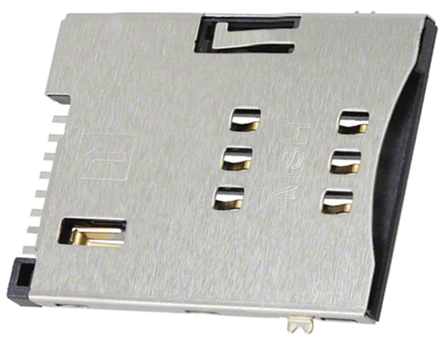

The 47553-2001 from Molex is a 1.27mm pitch, shielded SIM card holder with 2 detect pins and 6 circuits in push-push style. This SIM card holder is made of It is made of copper alloy, stainless steel metal with gold over nickel plating and gold termination plating, it mates with standard SIM card.
Front card entry location
Open card detection switch
Maximum durability of 2500 mating cycles
High temperature thermoplastic resin material
Surface mount termination interface style
Operating temperature range from -40°C to +85°C
Maximum 0.5A current per contact, maximum 50VDC voltage
