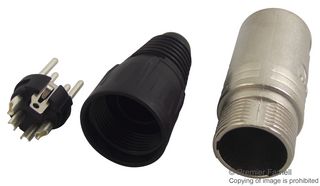

The NC4MX is a 4-pole XLR Audio Plug with nickel housing and silver-plated contacts. The industry standard XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy die cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
50V Voltage rating
10A Current rating
>2GR (Initial) and >1GR (after damp heat test) Insulation resistance
<=3mR Contact resistance
Boot with rubber gland gives high protection against bending stresses
Coloured rings and boots are available for coding and marking
