NC4MXX -

音频连接器, XLR, 4 触点, 插头, 电缆安装, 镀银触芯, 金属主体, XX系列

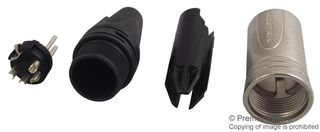

NEUTRIK NC4MXX
声明:图片仅供参考,请以实物为准!
制造商:
NEUTRIK NEUTRIK
制造商产品编号:
NC4MXX
仓库库存编号:
1108212
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

NC4MXX产品概述

The NC4MXX is a 4-pole Male XLR Cable Connector with nickel housing, latch locking device, POM strain relief and silver over nickel plated brass contacts. It has polyamide insert, polyurethane boot, nickel-plated zinc die-cast shell and zinc die-cast locking element. This XX series cable mount connector features more reliable, easier to assemble and improves contact integrity as well cable strain relief. Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, boot with polyurethane gland gives high protection to cable bending stresses.
  • With improved locking recess without window, more stringent housing increases durability
  • Sleek and ergonomic design - Valuable and handy
  • Rugged zinc die-cast shell, long-lasting and dependable
  • Internal thread on shell is well protected against any damage
  • UL94HB Flammability rating
  • IP40 Protection rating
  • Complies with IEC 61076-2-103 standard
  • Solderability complies with IEC 68-2-20 standard
  • <=3mR Contact resistance
  • >10GR Insulation resistance
  • 10A Current rating per contact
  • <50V Voltage rating
  • -30 to +80°C Temperature range

音频

NC4MXX产品信息

  触点数  4触点
  极性  插头
  连接器安装  电缆安装
  触点镀层  镀银触芯
  连接器主体材料  金属主体
  产品范围  XX系列
关键词
电话:400-900-3095
QQ:800152669

NC4MXX产地与重量

原产地:
Liechtenstein

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85366990
重量(千克):
.032205
