NC5MXX -

制造商：

NEUTRIK NEUTRIK

制造商产品编号：

NC5MXX

仓库库存编号：

1108215

技术数据表：

(EN)

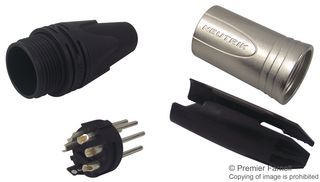

The NC5MXX is a 5-pole Male XLR Cable Connector with nickel housing, latch locking device, chuck type POM strain relief and silver over nickel plated brass contacts. It has polyamide insert, polyurethane boot, nickel-plated zinc die-cast shell and zinc die-cast locking element. This XX series cable mount connector features more reliable, easier to assemble and improves contact integrity as well cable strain relief. Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster, boot with polyurethane gland gives high protection to cable bending stresses.

• With improved locking recess without window, more stringent housing increases durability
• Sleek and ergonomic design - Valuable and handy
• Rugged zinc die-cast shell, long-lasting and dependable
• Internal thread on shell is well protected against any damage
• UL94HB Flammability rating
• IP40 Protection rating
• Complies with IEC 61076-2-103 standard
• Solderability complies with IEC 68-2-20 standard
• <=3mR Contact resistance
• >10GR Insulation resistance

• 7.5A Current rating per contact
• <50V Voltage rating
• -30 to +80°C Temperature range
