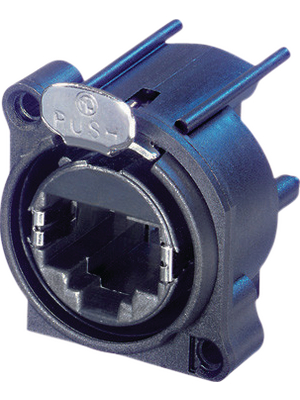

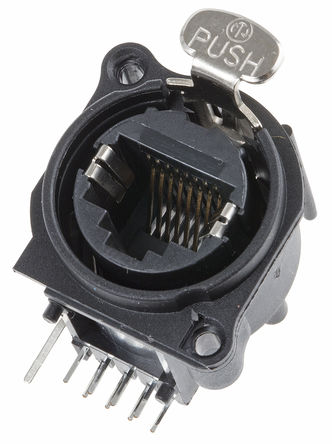

The NE8FAH is a 8-pole Horizontal PCB mount RJ45 Receptacle with latch locking device, A-Series cut-out and gold over nickel plated bronze contacts. It has PBTP insert and PBTP shell. This etherCON series connector is ruggedized and lockable, shaped to fit into standardized panels out of the entertainment industry. The all plastic A-Series offers the most space saving and cost effective design.
- Accommodates rugged etherCON NE8MC or any standard RJ45 plug
- Complies with Class D according to TIA/EIA 568B and ISO/IEC 11801 standard
- Isolated to panel ground
- UL94V-0 Flammability rating
- Solderability complies with IEC 68-2-20 standard
- <10mR Contact resistance
- >0.5GR Insulation resistance
- 1.5A Current rating per contact
- <50V Voltage rating
- -30 to +80°C Temperature range
