NP2X-B -

手机音频连接器, 专业版, 2 触点, 插头, 6.35 mm, 电缆安装, 镀金触芯, 金属主体

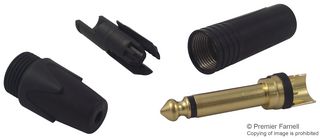

NEUTRIK NP2X-B
声明:图片仅供参考,请以实物为准!
制造商:
NEUTRIK NEUTRIK
制造商产品编号:
NP2X-B
仓库库存编号:
8314543
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

NP2X-B产品概述

The NP2X-B from Neutrik is a 2 pole 1/4" professional phone plug. This heavy duty professional phone plug has proven unique chuck type strain relief for reliable cable retention. The slimline shell with a width of 14.5mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. All metal housing design of this connector eliminates plastic cover of predecessor NP*RCS and improves further durability and EMI protection. This phone plug is used in audio cables, snakes, speakers, amplifiers, mixing desks and guitar applications.
  • Extra slim 1/4" plug for highest packing density
  • Robust die-cast shell in stylish design
  • Sleek design for best handling convenience
  • Rated voltage is less than 50V
  • Cable outer diameter range from 4mm to 7mm
  • Wire size is 18AWG (1mm2) and greater than 1000 mating cycles
  • Gold plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
  • Zinc die-cast shell with black chromium plating
  • IEC 60603-11/EIA RS-453 compliant
  • Temperature range from -20°C to 65°C

音频, 消费电子产品

NP2X-B产品信息

  触点数  2触点
  极性  插头
  针脚直径  6.35mm
  连接器安装  电缆安装
  触点镀层  镀金触芯
  连接器主体材料  金属主体
  产品范围  PX系列
关键词
电话:400-900-3095
QQ:800152669

NP2X-B产地与重量

原产地:
Liechtenstein

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85366990
重量(千克):
.026
