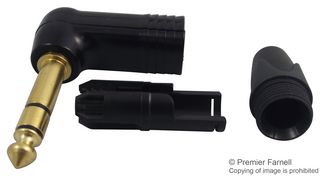

The NP3RX-B from Neutrik is a 3 pole right angle 1/4" professional phone plug. This heavy duty professional phone plug has proven unique chuck type strain relief for reliable cable retention. The slimline shell with a width of 14.5mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. All metal housing design of this connector eliminates plastic cover of predecessor NP*RCS and improves further durability and EMI protection. This phone plug is used in audio cables, snakes, speakers, amplifiers, mixing desks and guitar applications.
Extra slim 1/4" plug for highest packing density
Robust die-cast shell in stylish design
Sleek design for best handling convenience
Rated voltage is less than 50V
Cable outer diameter range from 4mm to 7mm
Wire size is 18AWG (1mm2) and greater than 1000 mating cycles
Gold plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
