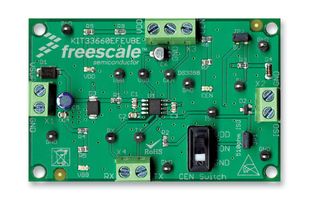

The KIT33660EFEVBE evaluation board supports the MC33660, which is a serial link bus interface device designed to provide bi-directional half duplex communication interfacing in automotive diagnostic applications. It is designed to interface between the vehicle's on board microcontroller, and systems off board the vehicle via the special ISO K line. The MC33660 is designed to meet the diagnostic system ISO9141 specification. The device's K line bus driver's output is fully protected against bus shorts and over temperature conditions.
- Nominal operating supply voltage range of 8V to 18V
- Slave or master configuration via jumper setting
- Interfaces directly to standard CMOS microprocessors
- ISO K line pin protected against shorts to battery
- Thermal shutdown with hysteresis
- ISO K line pin capable of high currents
- ISO K line can be driven with up to 10nF of parasitic capacitance
- 8kV ESD protection attainable with few additional components
- Standby mode no VBAT current drain with VDD at 5V
- Low current drain during operation with VDD at 5V
