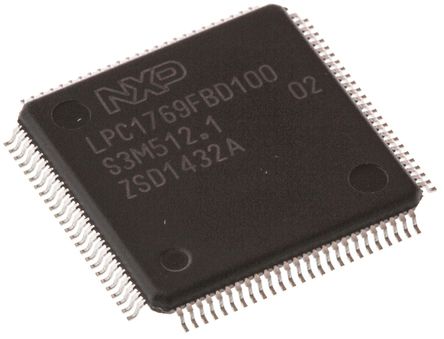

The LPC1769FBD100,551 is a Cortex-M3 Microcontroller featuring a high level of integration and low power consumption at frequencies of 120MHz. Features include 512kb of flash memory, 64kb of data memory, Ethernet MAC, USB device/host/OTG, 8-channel DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 12-bit ADC, 10-bit DAC, motor control PWM, Quadrature encoder interface, 4 general purpose timers, 6-output general purpose PWM, ultra-low power real-time clock with separate battery supply and up to 70 general purpose I/O pins. The LPC1769 is pin-compatible to the 100-pin LPC2368 ARM7 MCU.
- ARM Cortex-M3 Processor, Running at frequency of up to 120MHz, Built-in NVIC
- Up to 512kb On-chip Flash Programming Memory, up to 64kb On-chip SRAM
- In-system Programming (ISP) and In-application Programming (IAP)
- Eight Channel General Purpose DMA Controller (GPDMA)
- Ethernet MAC with RMII Interface and Dedicated DMA Controller
- USB 2.0 Full-speed Device/Host/OTG Controller
- Four UARTs with Fractional Baud Rate Generation, Internal FIFO and DMA Support
- CAN 2.0B Controller with Two Channels
- SPI Controller with Synchronous, Serial, Full Duplex Communication
- Two SSP Controllers with FIFO and Multi-protocol Capabilities
- Three Enhanced I2C Bus Interfaces
- I2S (Inter-IC Sound) Interface
- 70 General Purpose I/O (GPIO) Pins with Configurable Pull-up/Down Resistors
- 12-bit/8-channel Analogue/Digital Converter (ADC) with Conversion Rates up to 200kHz
- 10-bit Digital/Analogue Converter (DAC) with Dedicated Conversion Timer and DMA
- Four General Purpose Timers/Counters
- One Motor Control PWM with Support for Three-phase Motor Control
- Quadrature Encoder Interface that can Monitor One External Quadrature Encoder
- One Standard PWM/Timer Block with External Count Input
- Low-power RTC with a Separate Power Domain and Dedicated Oscillator
