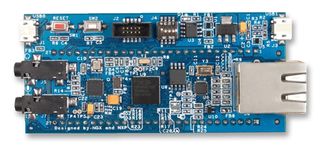

OM13028, 598是一个LPC1830-Xplorer featuring the LPC1830 cortex-M3 based微控制器. The LPC1830是一个高性能, cost effective Cortex-M3微控制器featuring 200KB of SRAM,和advanced 外部设备 including以太网,高速USB 2.0 Host/OTG/设备和CAN 2.0B. 运行频率 speeds up to 180MHz, the LPC1830 also features two new configurable 外部设备 a SPI 闪存 接口和a state configurable timer. It is bundled with a ULINK-ME debug adapter from Keil, as well as all needed USB cables, to enable 开发 to get started quickly. The ULINK-ME connects user PC's USB端口 to your target 系统 (via JTAG or SWD)和allows to program和debug内嵌型programs on the target 硬件.
- LPC1830控制器, 100引脚BGA
- 板载以太网物理层, 50MHz振荡器和RJ45磁性连接器
- 4层PCB
- 板载水晶用于控制器, 实时时钟和音频编解码器
- 微型SD卡槽
- 板载USB主电源开关
- 两个USB端口, 一个HS (高速)端口, 一个FS (全速)端口
- 启动选择开关
- 板载音频编解码器和音频插座
- 10引脚cortex 调试器针座
工业, 消费电子产品, 射频通信, 计量
