OM5569/NT312D -

制造商：

NXP NXP

制造商产品编号：

OM5569/NT312D

仓库库存编号：

2469336

技术数据表：

(EN)

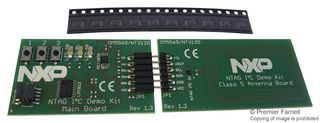

The OM5569/NT312D is a Demoboard for NFC connected tag chips. The NTAG I2C Demo Kit is a simple all-in-one demonstrator kit for NFC connected tag chips. It enables the end user to demonstrate the basic principle of dual interface communication (NFC/I2C) as well as also developing and testing their own applications while being to explore all NTAG I2C features. Main Board: A dual purpose demonstration and development hardware board based on the NXP LPC 812 microcontroller with NXP PCT2075 temperature sensor, I2C serial bus connector and JTAG debug connector to demonstrate bi-directional I2C serial bus/NFC communication, monitor energy harvesting capability and provide a localized application development environment, Class 5 Antenna Board: NTAG I2C tag chip mounted on a class 5 antenna FR4 PCB-based with separate antenna pads for custom antenna use and with built-in I2C serial bus interface.

• Ready-to-use demonstrator to showcase NFC interaction with electronics devices
• Tools to evaluate NTAG I2C features & develop own applications from microcontroller and NFC
