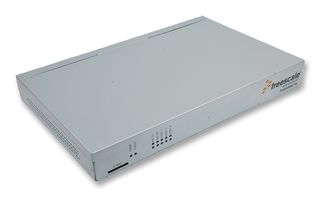

The P1024RDB-PA是一个参考design电路板 用于P1024 通讯处理器. The P1024 通讯处理器 offers extensive integration和extreme power 用于a wide variety of应用. Based on 45nm technology 用于低功率implementation, the P1024处理器 provide 双核 solutions 用于the 400MHz to 667MHz 性能 range, along with advanced security和a rich set of 接口s. This cost effective, 高度集成电路板 is 基于QorIQ P1024处理器和incorporates a broad array of modern connectivity options to help to quickly设计, test和launch application. The P1024RDB-PA是一个feature rich 平台 that 支持 a wide range of different application needs. It features 1GB unbuffered DDR3 SDRAM, 16MB NOR 闪存和32MB NAND闪存, where the 平台 can boot from either NOR or NAND闪存存储器.
- PCI express互连接器
- 以太网
- USB 2.0端口
- 开放式电源连接器
- JTAG/COP用于调试
- 双I2C接口
- 迷你连接器AB 位于输入输出面板
- 双路SLIC用于FXS/FXO接口
- IEEE 1588信号用于测试和测量
- 六层电路板布线(四层信号,两层电源和接地)
- 闪存启动和集成安全引擎
- 开放式电源连接器
- JTAG/COP用于调试
通信与网络, 国防, 军用与航空, 工业, 无线
