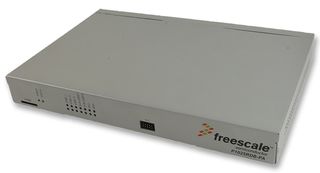

P1025RDB-PA -

制造商：

NXP NXP

制造商产品编号：

P1025RDB-PA

仓库库存编号：

2315675

技术数据表：

(EN)

The P1025RDB-PA是一个参考design电路板 based on QorIQ P1025处理器. The P1025RDB features 双核 P1025处理器和offers support 用于single core P1016处理器. The P1025处理器 is based on e500 core, built on power架构technology, with a core frequency range of 400MHz to 667MHz和支持 L1 32KB instruction和data cache as well as a shared 256KB front side L2 cache. The P1025 支持 three Gigabit以太网控制器 with IEEE 1588 v2 support, dual USB 2.0, up to two PCI express 1.0a控制器, up to two SGMII SerDes 接口s, 32位DDR with ECC support, a SPI控制器 supporting boot from SPI serial 闪存存储器, an SD/MMC card控制器 supporting boot from 闪存 cards, an集成 security engine和QUICC engine模块 supporting UTOPIA-L2, four T1/E1/HDLC和two additional 10/100以太网 接口s. Along with 硬件 support, the电路板 comes with a电路板 support封装 that包括both u boot和Linux 2.6 OS support.

• 256KB M2456 I2C EEPROM
• 16MB SPI ROM
• 32MB NAND闪存存储器
• 16MB NOR闪存存储器
• 1GB DDR3内存
• PCI express连接器
• 以太网端口
• USB 2.0端口
• SD/MMC卡槽
• 开放式电源连接器
