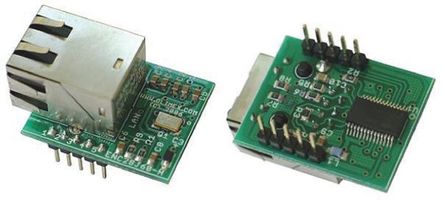

The ENC28J60-H is a ENC28J60 Ethernet controller development board. The ENC28J60 is a 28pin, 10BASE-T stand alone Ethernet controller with on board MAC & PHY, 8Kbytes of buffer RAM and an SPI serial interface. With a small foot print package size the ENC28J60 minimizes complexity, board space and cost. ENC28J60-H is world's smallest Ethernet controller development board with it's size of only 30x24 mm. It provides easy connection to any microcontroller with only few ports via SPI which makes it perfect for adding Ethernet connectivity to embedded applications.
- ENC28J60 10Mbit Ethernet controller
- On board RJ 45 connector with build in Ethernet transformer and two status LEDs
- Easy interface to any microcontroller via SPI
- Fully compatible with 10/100/1000Base-T networks
- Supports one 10Base-T port with automatic polarity detection and correction
- Supports full and half duplex modes
- Programmable automatic retransmit on collision
- Programmable padding and CRC generation
- Programmable automatic rejection of erroneous packets
- SPI interface with clock speeds Up to 20MHz
