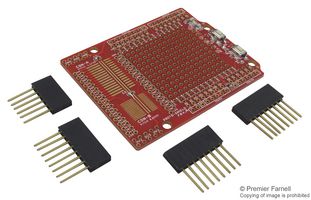

The PROTO-SHIELD is a prototype board compatible with all of ARDUINO compatible boards like OLIMEXINO-328, OLIMEXINO-STM32 and PIC32-PINGUINO. The board comes without mounted connectors on it, but it is shipped with one 6x1 connector and three 8x1 connectors, which can be mounted by the customer. The prototype area gives user the opportunity to solder different extensions for ARDUINO compatible boards. All this allows you to build a diversity of applications.
- Stackable headers
- Two buttons
- Two LEDs
- Prototype PTH area
- SMD IC area
- Filter capacitors
- Four mount holes make board attachment easier
- Board size available with 65.58mm x 53.34mm
