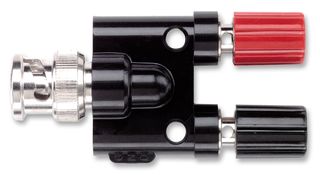

The 1296 from Pomona is a BNC male to double stacking binding post jack. Binding posts can be vertically and horizontally stacked for test versatility. Wires, spade lugs, pin tip plugs and banana plugs can be attached by means of the insulated knurled thumb knob. Insulated thumb knob is captive to prevent misplacement.
Black ABS body
Nickel plated copper banana plug
Gold plated copper BNC center
Rated 500V rms
Maximum hand held testing voltage is 30VAC/60VDC
Maximum hands free testing in controlled voltage environments is 500Vrms
