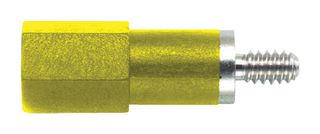

The 5700-4 from Pomona is a terminal strip banana jack with #8-32 (thread) x 1/4" screw connection. This adapter provides a banana jack connection by replacing the screw in a terminal strip. Secure connections can be made with standard banana plug patch cords without breaking the connection to the terminal strip.
Overall length is 1.13" (28.70mm)
Nickel plated brass banana jack and threaded stud
Yellow colour nylon 6, 20% glass filled
Maximum current rating is 25A
Maximum power rating is 7500W
Maximum operating temperature is 102°C
Hands free usage in controlled voltage environments is 1600Vrms
