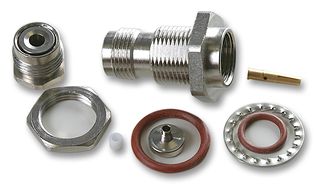

The R143324000 is a straight Bulkhead TNC Jack, panel sealed, rear mount clamp type, with gold over nickel plated beryllium copper center contact, nickel plated brass body for 2.6/50 cable. This TNC series jack has PTFE insulation, panel mounting and solder termination, suitable for high power levels.
Screw-on equivalent to BNC bayonet series
Good RF performance
Long life and high strength
Meets MIL-C-39012/MIL STD 348A/313, IEC 60169-17 and CECC 22200 standards
