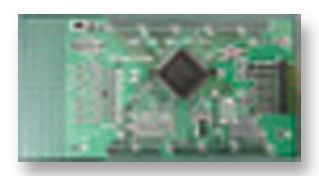

The QB-78K0LG3M-TB是一个target电路板 used 用于评估微控制器operations 78K0/LG3-M, using the QB-MINI2, the Renesas Electronics 片上debug emulator with编程功能 (hereinafter referred to as MINICUBE2). As a CPU电路板 usable in connection with the 片上debugging emulator E1 or MINICUBE2, this product achieves simple和easy 评估 of the target MCU. The CPU电路板 is provided with a 16 pin/2.54mm pitch 连接器 用于the connection with MINICUBE2. Connecting it to the E1 emulator, whose user 接口cable has a 14 pin/2.54mm pitch 连接器, requires the optional adapter QB-F14T16-01.
- 内置78K0/LG3-M (μPD78F8055GC)微控制器
- 与10MHz主时钟高速运行
- 配备通用区域(2.54mm间隔)
- 支持闪存存储器编程和片上调试(OCD1A/OCD1B 引脚)
- 微控制器引脚用于连接外部设备电路板和连接器, 以进行更高级扩展
