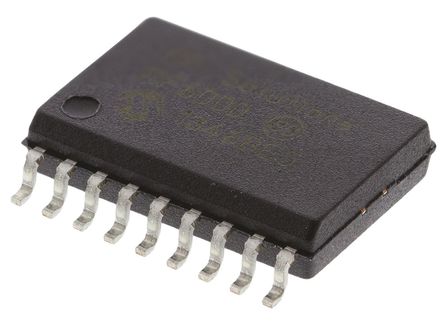

RF600D-SO is a decoder I/Cs with 18pin SO-8 package, it has been designed to achieve the maximum possible range from any radio/infrared transmitter receiver set. This decoder is very easy to use and can be inserted directly into a circuit. In the stand alone operation, the RF600D-SO has the capability to learn up to 7 unique RF600E transmitters and with the addition of an EEPROM memory device this is increased to 48 RF600E encoders. The RF600D-SO may operate with an external 96C76 EEPROM device as additional memory to store identity information of transmitter/encoders. Data stored within the EEPROM is encrypted to maintain security. The RF600D-SO is connected directly to the data output of a radio receiver module and upon detection of a valid data packet it will decode the Keeloq encrypted data stream. When an address match occurs the RF600D-SO asserts its 4 digital outputs. An additional output, which shows the status of the encoder battery, is also asserted.
- Decoder I/Cs with 18pin SO-8 package
- Highly Secure Keeloq Protocol
- In stand alone operation, RF600D has the capability to learn up to 7 unique RF600E transmitters
- Each RF600D+EEPROM combination can learn up to 48 unique transmitter/encoders
- Asynchronous serial interface
- 4 digital outputs(15 States)
- The digital outputs may be configured as latching or momentary action
- Led Indication of Transmission
- Unprecedented level of security , prevents copying or grabbing whist
- Compatible with RF Solutions Systems
射频通信, 车用, 消费电子产品
