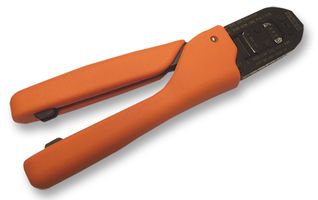

The CAT-HT-203-2832-11 is a Straight Action Hand Tool designed to crimp CC03 (SFSD series) contacts. The front of the tool is marked with the tool part number, wire size ranges and crimp height specifications. The tool features a movable die (anvil) and a ratchet. The locator/insulation stop positions the contact and limits the insertion distance of the stripped wire into the contact. In use the locator/insulation stop rests in the locator slot of the contact. The ratchet assures full crimping of the contact. Once engaged the ratchet will not release until the dies have been fully closed.
