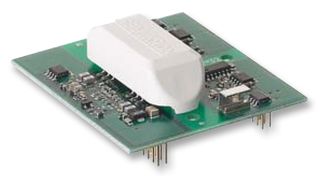

The SKYPER 32PRO R is an IGBT Driver Core constitutes an interface between IGBT modules and the controller. This core is a half bridge driver. Functions for driving, potential separation and protection are integrated in the driver. Thus it can be used to build up a driver solution for IGBT modules.
- Two output channels
- Integrated potential free power supply for secondary side
- Short pulse suppression (SPS)
- Under-voltage protection (UVP) primary and secondary
- Under-voltage reset (UVR)
- Drives interlock (dead time) top/bottom (DT) adjustable
- Dynamic short-circuit protection (DSCP) by VCE monitoring and direct switch off
- Soft turn-OFF (STO)
- Halt logic signal (HLS)
- Failure management
- External error input
- DC bus voltage up to 1200V
- Coated with varnish
- 50kHz Maximum switching frequency
