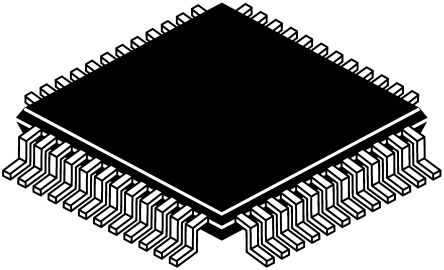

The EFM8UB20F64G-A-QFP48 is an Universal Bee 8051 based 8-bit Microcontroller USB feature set. This device offer high value by integrating an USB peripheral interface with a high precision oscillator, clock recovery circuit and integrated transceiver, making them ideal for any full speed USB applications with no external components required. With on-chip power-on reset, voltage supply monitor, watchdog timer and clock oscillator, this device is truly standalone system-on-a-chip solutions. The flash memory is reprogrammable in-circuit, providing non-volatile data storage and allowing field upgrades of the firmware. The on-chip debugging interface allows non-intrusive, full speed, in-circuit debugging using the production MCU installed in the final application. This debug logic supports inspection and modification of memory and registers, setting breakpoints, single stepping and run and halt commands. All analog and digital peripherals are fully functional while debugging.
- Pipelined CIP-51 core
- Fully compatible with standard 8051 instruction set
- 70% of Instructions execute in 1-2 clock cycles
- 48MHz Maximum operating frequency
- Internal LDO regulator for CPU core voltage
- Internal 5 to 3.3V LDO allows direct connection to USB supply net
- Power-on reset circuit and brownout detectors
- Internal 48MHz Precision oscillator
- Internal 80kHz low-frequency oscillator
- External crystal, RC, C and CMOS clock options
- Universal serial bus (USB) function controller
- 2 x UART interface
- SPI master/slave
- 2 x SMBus/I2C Master/Slave
- External memory interface (EMIF)
- 10-bit ADC
- 2 x Low-current analog comparators
- On-chip, Non-Intrusive debugging
- Pre-loaded USB bootloader
