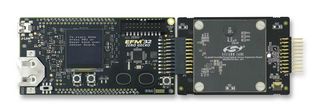

The SLSTK3201A Zero Gecko Starter Kit includes a Humidity/Temp/Optical expansion board (BRD8001A) and a EFM32ZG-STK3200 Zero Gecko STK. This board is a hardware plug-in card for the EFM32 starter kits (STKs). The expansion board contains the Si7013 Relative Humidity and Temperature Sensor, Si1147 Proximity/UV/Ambient Light Sensor and all IR LEDs and optomechanical components necessary for development of gesture and proximity applications. The SLSTK3201A is fully supported within Simplicity Studio for fast prototyping and development. A complete weather station application demonstrates relative humidity, temperature and/or UV index measurements and 2D gesture control. Right or left gestures move the display type and on the temperature screen, up or down gestures move the display between °C or °F. Source code is provided within Simplicity Studio, which allows developers to easily develop their own designs.
- Si7013 humidity and temperature sensor
- Si1147 proximity sensor
- Three IR LEDs for gesture detection
- 20pin expansion header
- Features with long battery life
