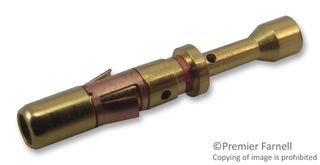

The RC24M9K is a solid machined contact for TRIM TRIO connectors, socket type, 0.13 to 0.20mm2 wire. The contact is precision solid machined crimp snap-in sockets for heavy -duty top performance requirements. Springs on both contacts are made of spring-tempered, heat-treated, beryllium copper. The socket inner spring supplies high contact pressure to ensure low-resistance contact between socket. The socket contact features closed entry to prevent probe damage. Crimp barrels have insulation grips for vibration support and are provided with a cable stop and inspection hole.
Closed entry design on RC socket contact to prevent probe damage
