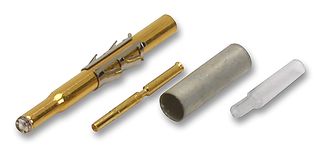

The RMDXK10D28 is a Male Multipiece Subminiature Coax Contact for TRIM TRIO connectors. Made of copper with 0.75μm gold over nickel finish. Available in #16 size. The RMDX mono-crimp contact is one-piece subminiature coaxial contacts to cover a wide range of subminiature coaxial and twisted pair cables. The RMDX contact can be used in any contact position with MS-M/MSG/MB, SMS Qikmate, UTG, UTP, UT0, MBG and TRIM TRIO series circular connectors. Mono-crimp one piece coaxial contacts offer high reliability plus the economic advantage of a 95% reduction in installation time over conventional assembly methods currently in use.
230VDC Operating voltage between inner/outer contact
450VAC 1 Minimum test potential between inner/outer contact
