STEVAL-MKI089V1 -

制造商：

STMICROELECTRONICS STMICROELECTRONICS

制造商产品编号：

STEVAL-MKI089V1

仓库库存编号：

1841121

技术数据表：

(EN)

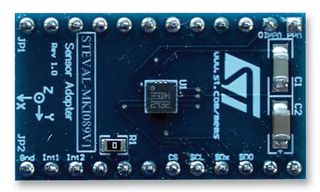

The STEVAL-MKI089V1 is an adapter board designed to facilitate the evaluation of LIS331DLH accelerometer. The LIS331DLH is an ultra low power high performance three axis linear accelerometer with ±2g/±4g/±8g dynamically selectable full scale. The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application. The STEVAL-MKI089V1 can be plugged into a standard DIL 24 socket. This adapter board provides the complete LIS331DLH pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVALMKI109V2 motherboard which includes a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.

• Complete LIS331DLH pinout for a standard DIL 24 socket
• Fully compatible with all other available adapter boards
• Low power consumption
• High shock survivability
• 6D orientation detection
• ±2g/±4g/±8g dynamically selectable full scale
• I2C/SPI digital output interface
• Embedded self test
• Sleep to wake up function
• Ultralow power mode consumption down to 10μA
