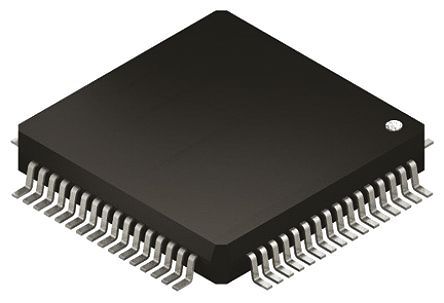

The STM32F373R8T6 is a 32-bit 64kB flash ARM?Cortex? -M4 Microcontroller Unit offers digital signal processing (DSP) and floating point unit (FPU). It offers one fast 12-bit ADC, three 16-bit sigma delta ADCs and two comparators, two DACs, a low-power RTC and 9 general-purpose 16-bit timers, two general-purpose 32-bit timers and three basic timers. It features standard and advanced communication interfaces two I2Cs, three SPIs, all with muxed I2Ss, three USARTs, CAN and USB. It incorporates high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
CRC calculation unit
Reset and power management - Power-ON/power DOWN reset (POR/PDR)
Programmable voltage detector
Low-power - Sleep, stop and standby
VBAT supply for RTC and backup registers
12-channel DMA controller
Independent and system watchdog timers
SysTick timer - 24-bit down counter
Calendar RTC with alarm and periodic wakeup from stop/standby
