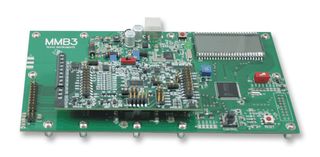

The ADS1248EVM-PDK is a complete evaluation/demonstration kit for ADS1248, a highly integrated, precision, 24bit analog to digital converter (ADC). The ADS1248 feature an onboard, low noise, programmable gain amplifier (PGA), a precision delta sigma (ΔΣ) ADC with a single cycle settling digital filter, and an internal oscillator. This kit combines the ADS1248EVM with the MSP430 based MMB3 motherboard for use with a personal computer. The MMB3 motherboard allows the ADS1248EVM to connect to a computer via a USB port. The ADS1248EVM-PDK is controlled by the ADCPro evaluation software using a plug in. The software is designed to run with the Microsoft Windows operating system and allows for the complete evaluation of the ADS1248 device.
- Contains all support circuitry needed for the ADS1248
- ±2.5V and +5V power supply options for ADC
- Voltage reference options: external or onboard
- GPIO access
- Compatible with the modular EVM system
- Data collection to text files
- Built in analysis tools including scope, FFT, and histogram displays
- Complete control of board settings
- Easily expandable with new analysis plug in tools
- Easy to use evaluation software for Microsoft Windows XP
