ADS1274EVM-PDK -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

ADS1274EVM-PDK

仓库库存编号：

2334091

技术数据表：

(EN)

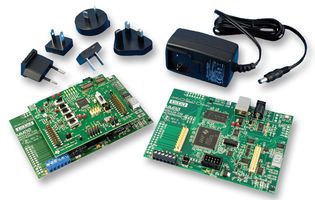

The ADS1274EVM-PDK is a complete evaluation/demonstration kit for ADS1274 device. The ADS1274EVM is an evaluation module built to the Modular EVM System specification. It can be connected to any modular EVM system interface card. The ADS1274 is 24bit, delta sigma analog to digital converters (ADCs) with data rates up to 144k samples per second (SPS), allowing simultaneous sampling of four. Four operating modes allow for optimization of speed, resolution, and power. All operations are controlled directly by pins; there are no registers to program. The MMB0 is a Modular EVM System motherboard. It is designed around the TMS320VC5507, a DSP with an on board USB interface . The MMB0 also has 16MB of SDRAM installed. ADCPro is a program for collecting, recording, and analyzing data from ADC evaluation boards. It is based on a number of plug-in programs, so it can be expanded easily with new test and data collection plug-ins.

• Evaluation software easy to use for Microsoft windows XP and windows 7
• Built in analysis tools including scope, FFT, and histogram displays
• Data collection to text files
• Complete control of board settings
• Easily expandable with new analysis plug in tools
