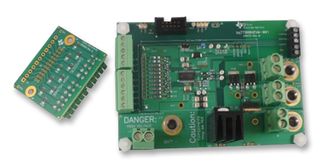

The bq77908AEVM-001 evaluation module is a complete evaluation system for the bq77908A, a 4-series to 8-series cell Li ion battery protection integrated circuit. The evaluation module consists of a bq77908A circuit module and a resistor cell simulator module, which can be used for simple evaluation of the bq77908A functions. The circuit module includes bq77908A integrated circuit (IC), sense resistor, power FETs and all other onboard components necessary to protect the cells from overcharge, over discharge, short circuit, and over current discharge in a 8-series cell Li ion or Li polymer battery pack. The circuit module connects directly across the cells in a battery. With a compatible interface board and Windows based PC software, the user can view the bq77908A registers and program the IC configuration and protection limits.
- Populated circuit module for 8-cell, parallel FET configuration for quick setup
- Power connections available on terminal blocks or banana jacks
- Control and status signals available on terminal blocks
- Resistor cell simulator for quick setup with only a power supply
- Personal computer software available for configuration
- Individual cell voltage monitoring
- 5.6V to 40V supply voltage range
- Integrated 3.3V micro power LDO regulator
