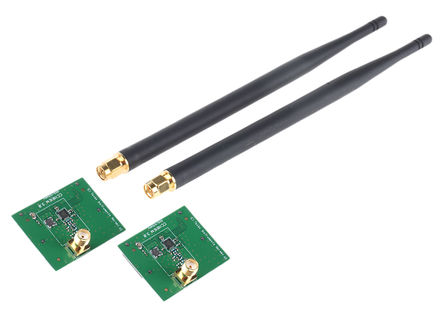

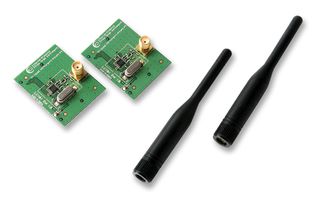

The CC1101EMK868-915 are add on boards for CC1101 development kit . CC1101 is a low cost sub 1 GHz transceiver designed for very low power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 868 and 915 MHz. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats. CC1101 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake on radio. The evaluation kit in combination with a CC1101 development kit is designed to help the user to achieve his/her objectives as quickly as possible. The CC1101EMK can also be used with two MSP430FG4618/F2013 Experimenter Boards for software development, prototyping and testing using the MSP430.
- The RF section is designed for operation in the 868MHz to 915MHz frequency bands
- Suitable for frequency hopping systems due to a fast settling frequency synthesizer
- Flexible support for packet oriented systems
- Support for automatic Clear Channel Assessment (CCA) before transmitting
射频通信, 无线, 安全, 自动化与过程控制, 工业, 传感与仪器
