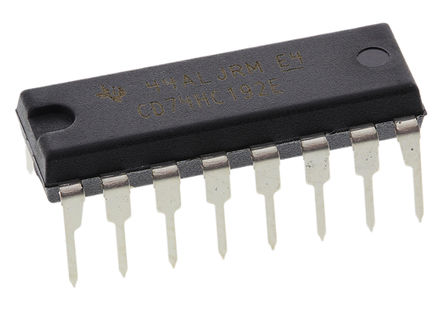

The CD74HC192E is a 4-bit high-speed CMOS logic presettable synchronous Up/Down Counter. Presetting the counter to the number on the preset data inputs (P0-P3) is accomplished by a low asynchronous parallel load input (PL). The counter is incremented on the low-to-high transition of the clock-up input (and a high level on the clock-down input) and decremented on the low to high transition of the clock-down input (and a high level on the Clock-up input). A high level on the MR input overrides any other input to clear the counter to its zero state. The terminal count up (carry) goes low half a clock period before the zero count is reached and returns to a high level at the zero count. The terminal count down (borrow) in the count down mode likewise goes low half a clock period before the maximum count (9 in the 192 and 15 in the 193) and returns to high at the maximum count.
Synchronous counting and asynchronous loading
Two outputs for N-bit cascading
Look-ahead carry for high-speed counting
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
