DRV8805PWP -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

DRV8805PWP

仓库库存编号：

2099903

技术数据表：

(EN)

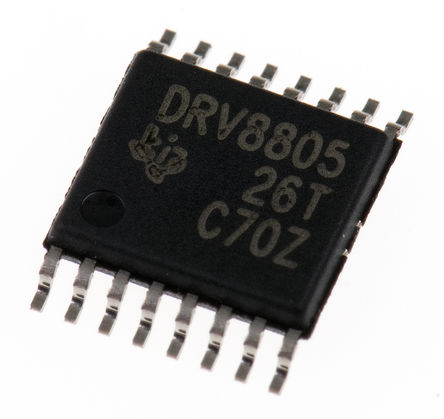

The DRV8805PWP is a 2A unipolar stepper Motor Driver with on-chip indexer. It includes four low side drivers with over-current protection and provides built-in diodes to clamp turn-off transients generated by the motor windings. Indexer logic to control a unipolar stepper motor using a simple step/direction interface is also integrated. The DRV8805 can supply up to 2A (one channel on) continuous output current per channel, at 25°C with proper PCB heat-sinking. Internal shutdown functions are provided for over-current protection, short-circuit protection, under-voltage lockout and over-temperature and faults are indicated by a fault output pin.

• 4-channel protected low-side driver
• Four NMOS FETs with over-current protection
• Integrated inductive catch diodes
• Indexer/translator for unipolar stepper motors
• Simple step/direction interface
• Green product and no Sb/Br
