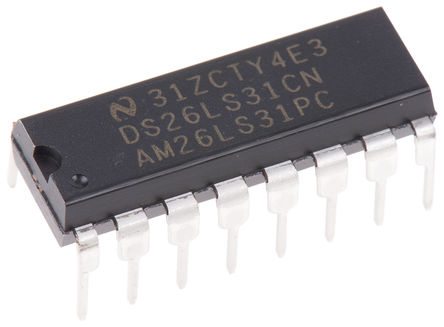

The DS26LS31CN is a Quad High Speed Differential Line Driver, designed for digital data transmission over balanced lines. Meets all the requirements of EIA Standard RS-422 and Federal Standard 1020. It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission lines. The circuit provides an enable and disable function common to all four drivers. It features TRI-STATE outputs and logically ANDed complementary outputs. The inputs are all LS compatible and are all one unit load.
2.0ns Typical output skew
10ns Typical input to output delay
Operation from single 5V supply
Outputs will not load line when VCC = 0V
Four line drivers in one package for maximum package density
