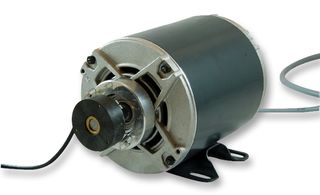

The HVACIMTR is a AC induction motor for TMDSHVMTRPFCKIT. The AC induction motor kit is designed for customers looking to use the high voltage motor control and PFC developer's kit with an AC induction motor. The kit includes a three phase AC induction motor and an encoder, both of which are work with the motor control kit software right out of the box. The kit comes with a GUI which provides a convenient way to evaluate the functionality of the kit and the F28035 device, without having to learn and configure the underlying project software or install CCS. The interactive interface using sliders, buttons, textboxes and graphs enables easy demo of sensorless control of ACI, PMSM, and BLDC motor.
- Power factor correction stage rated for 750W
- AC rectifier stage rated for 750W power. Accepts 85VAC to 132VAC/ 170VAC to 250VAC input
- Isolated CAN, SCI & JTAG
- Four PWM DACs to observe the system variables on an oscilloscope
- Open source software available through controlSUITE for each type of motor and control
- Hardware developer's package available which includes schematics and bill of materials
