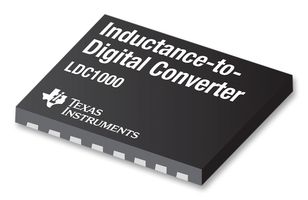

The LDC1000NHRT is a 5V, high resolution, Inductance to Digital Converter for inductive sensing applications. Inductive sensing is a contact-less, short-range sensing technology that enables high-resolution sensing of conductive targets in the presence of dust, dirt, oil and moisture, making it extremely reliable in hostile environments. Using a coil which can be created on a PCB as a sensing element, the LDC1000NHRT enables ultra-low cost system solutions. Inductive sensing technology enables precise measurement of linear/angular position, displacement, motion, compression, vibration, metal composition. Inductive sensing offers better performance and reliability at lower cost than other competitive solutions. The LDC1000NHRT is the world's first inductance-to-digital converter, offering the benefits of inductive sensing in a low-power, small-footprint solution.
- Magnet-free operation
- Sub-micron precision
- Adjustable sensing range (through coil design)
- Remote sensor placement (decoupling LDC from harsh environments)
- High durability (by virtue of contact-less operation)
- Insensitivity to environmental interference (such as dirt, dust, water, oil)
- 4.75 to 5.25V (analogue) and 1.8 to 5.25V (IO) Supply voltage
- 1.7mA Supply current (without LC tank)
- 16-bit Rp resolution
- 24-bit L resolution
- 5kHz to 5MHz LC Frequency range
- Green product and no Sb/Br
