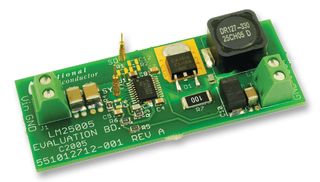

The LM25005EVAL evaluation board is designed to provide the design engineer with a fully functional power converter based on emulated current mode control to evaluate the LM25005 regulator IC. The evaluation board provides a 5 V output with a 2.5A current capability. The design operates at 300kHz, a good compromise between conversion efficiency and solution size. The printed circuit board consists of two layers of two ounce copper on FR4 material with a thickness of 0.06inches.
7V to 42V input voltage range
0A to 2.5A output current range
Available with 2.75inches × 0.4inches board size
300kHz frequency operation
Internal bias regulator
1.5% feedback reference accuracy
Current mode control with emulated inductor current ramp
