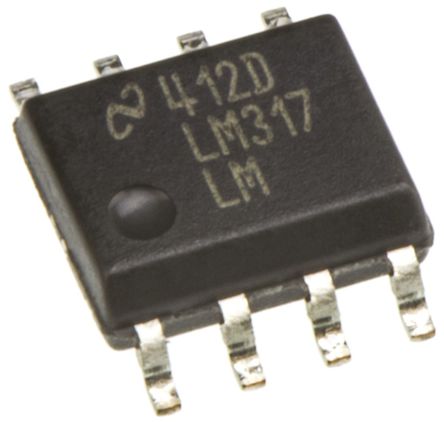

LM317LM/NOPB -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

LM317LM/NOPB

仓库库存编号：

1469087

技术数据表：

(EN)

The LM317LM/NOPB is a 3-terminal Adjustable Regulator capable of supplying 100mA over a 1.2 to 37V output range. It is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, both line and load regulation is better than standard fixed regulators. In addition to higher performance than fixed regulators, this regulator offers full overload protection. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected. Normally, no capacitors are needed unless the device is situated more than 6 inches from the input filter capacitors in which case an input bypass is needed. An optional output capacitor can be added to improve transient response. The adjustment terminal can be bypassed to achieve very high ripple rejection ratios which are difficult to achieve with standard 3-terminal regulators.

• 0.01%V Typical line regulation
• 0.1% Typical load regulation
• Current limit constant with temperature
• Eliminates the need to stock many voltages
• Output is short-circuit protected
• Green product and no Sb/Br
