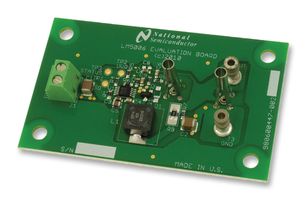

The LM5006EVAL/NOPB is a LM5006 evaluation board, provides the design engineer with a fully functional buck regulator, employing the constant on time (COT) operating principle. This evaluation board provides a 5V output over an input range of 6V to 75V. The circuit delivers load currents to 500 mA, with current limit set at a nominal 1A.
- 6V to 75V input voltage range
- Integrated 80V, N-channel buck switch
- Internal start up regulator
- No loop compensation required
- Ultra fast transient response
- Operating frequency remains constant with line and load variations
- Adjustable output voltage from 2.5V
- Precision internal reference, ±2.5%
- Intelligent current limit reduces fold back
- Gate output driver for synchronous rectifier
