MSP-FET430PIF -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

MSP-FET430PIF

仓库库存编号：

1172236

技术数据表：

(EN)

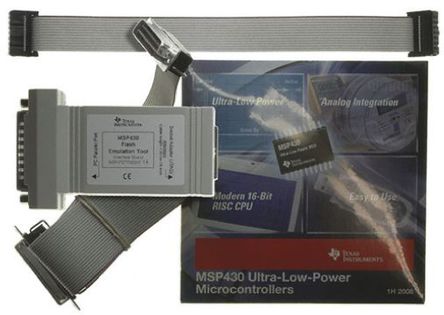

The MSP-FET430PIF is a parallel port debugging interface that is used to program and debug MSP430 FET tools and test boards through the JTAG interface. This interface uses a Parallel PC Port to communicate to the debugger software (IAR Kickstart software included) running on the PC. The interface uses the standard 14 pin header to communicate to the MSP430 device using the standard JTAG protocol. The flash memory can be erased and programmed in seconds with only a few keystrokes, and since the MSP430 flash is extremely low power, no external power supply is required. The tool has an integrated software environment and connects directly to the PC which greatly simplifies the setup and use of the tool. The flash development tool supports development with all MSP430 flash parts.

• Used to program and debug MSP430 FET tools and test boards through the JTAG interface
• MSP430 debugging interface to connect a MSP430 flash device to a Parallel port on a PC
• Supports JTAG debug protocol
• Backwardly compatible with existing FET tool boards
