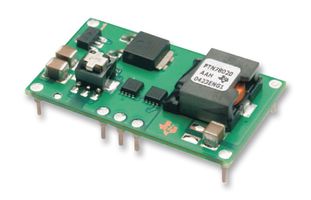

The PTN78020HAH is a 1-output 90W through-hole wide-input general purpose Adjustable Switching Regulator provides high-efficiency, step-down voltage conversion for loads of up to 6A. The PTN78020 is a series of high-efficiency, step-down integrated switching regulators (ISRs), that represent the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes these modules suitable for a variety of applications. The PTN78020 is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. The output voltage is set using a single, external resistor. It has under-voltage lockout, an integral on/off inhibit and includes an output current limit and over-temperature protection.
- High efficiency
- ON/OFF Inhibit
- Under-voltage lockout
- Output current limit
- Over-temperature shutdown
- -40 to 85°C Operating temperature range
电源管理, HVAC, 测试与测量, 医用, 车用, 航空电子
