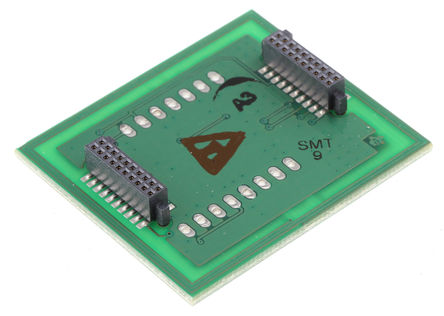

The RF430CL330HTB is a target board for RF430CL330H NFC interface transponder. The RF430CL330H is a NFC tag type 4 device that combines a wireless NFC interface and a wired SPI or I2C interface to connect the device to a host. The NDEF message in the SRAM can be written and read from the integrated SPI or I2C serial communication interface and can also be accessed and updated wirelessly via the integrated ISO14443B compliant RF interface that supports up to 848Kbps. The target board is used to demonstrate the capabilities of the RF430CL330H and help aid in the development process by providing a working hardware/firmware reference example for NFC operations. The RF430CL330HTB allows for the developer to become familiar with the RF430CL330H NFC type 4B tag platform IC. The board can be used with many different microcontroller development platforms that use the Samtec EM headers.
I2C/SPI interface
ISO14443B protocol
NFC tag type 4B compliant
3KB available for NDEF message storage
Interrupt to indicate end of read or end of write
Through holes of all pins for debug and development
Onboard antenna or optional external antenna connection (remove R3 and R4 for external antenna)
