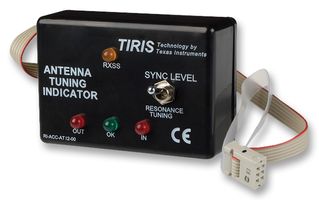

RI-ACC-ATI2-00 is a antenna tuning Indicator is a tool which simplifies the resonance tuning of the antenna and the adjustment of the RXSS synchronisation level for wireless read cycle synchronisation. The Antenna Tuning Indicator makes the resonance tuning of TI-RFid's Standard RFM (RI-RFM-104B) and the High Performance RFM (RI-RFM-007B) easy. LED's indicate in which direction the tuning core should be turned (RI-RFM-104B) or whether tuning capacitance need to be added or removed (RI-RFM-007B) to bring a connected antenna to resonance. As a second function, this tool helps to adjust the noise level threshold of a connected reader to best fit the actual environment of other interfering RF emitters. The Antenna Tuning Indicator also assists to optimise the wireless synchronisation of a S2000 system with multiple readers and so guarantees best possible reading performance. The ATI is connected directly to the RF Module via the ATI connector on the RF Module.
Operating frequency is 134.2Khz
Resonating tuning accuracy is ±600Hz
Operating temperature range 0°C to +50°C
ATI makes the resonance tuning of TI-RFid's Standard RFM and the High Performance RFM easy
LED indication is used to indicate which direction the tuning core should be turned
