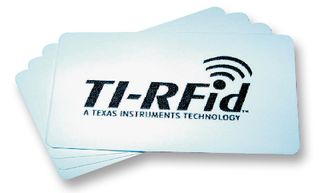

RI-TH1-CB1A-00 is a Vicinity Card Transponder from Texas Instruments is compliant with the ISO/IEC 15693 global standard for contactless integrated circuit cards operating at 13.56MHz. The card is based on TI's Tag-it TM Smart Label technology and allows interoperability of products from multiple manufacturers. With a user memory of 2K bits organised in 64 blocks the 13.56MHz card enables advanced solutions in a variety of markets. This card can be easily customised and personalised using standard thermo transfer printers. In application where the card needs to be used with a clip, we recommend a pouch since punching a hole would destroy the product. In addition to the functionality defined in the ISO/IEC 15693 standard, the Vicinity Card Transponder also supports an extended set of command options, providing more system flexibility.
- IS0/IEC 15693 compliant
- 13.56MHz operating frequency
- Read/write capability with data locking option
- 2k bit user memory organised in 64 x 32-bit blocks
- Simultaneous identification
- Operating temperature range -25°C to +50°C
- Data retention time greater then 10 years
- Thermotransfer, tampon, silkscreen printability
- Up to 50 tags per second (reader/antenna dependent) simultaneous identification of tags
