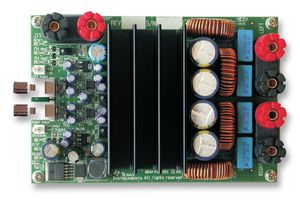

The TAS5613PHD2EVM is a PurePath premier pro customer evaluation module demonstrates the IC TAS5613PHD from TI. The TAS5613PHD is high performance, integrated stereo feedback analog input digital amplifier power stages designed to drive 4R speakers at up to 150W per channel for TAS5613PHD. This amplifier requires only a simple passive demodulation filter to deliver high quality, high efficiency audio amplification. This evaluation module is configured with 2 BTL channels and the possibility to apply either a single ended or a differential analog input signal. It is also possible to configure the two BTL channels into one parallel BTL (PBTL) channel. The OPA1632 is a high performance fully differential audio Op Amp designed to allow operation with single ended or differential input signals to the evaluation module.
- Stereo PurePath premier pro evaluation module
- Self contained protection system (short circuit and thermal)
- Standard 1VRMS single ended line input or differential input
- Double sided, plated through PCB layout
